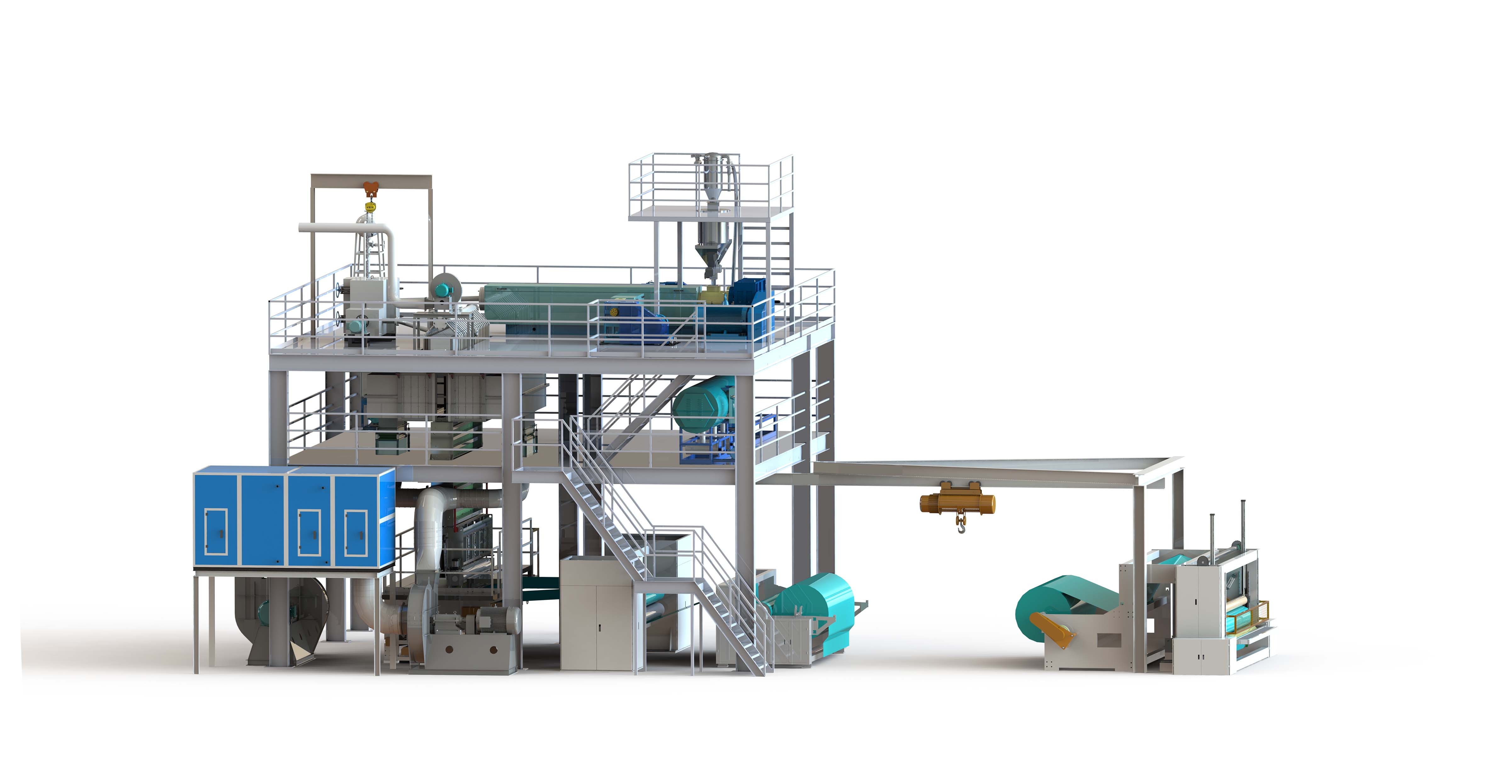

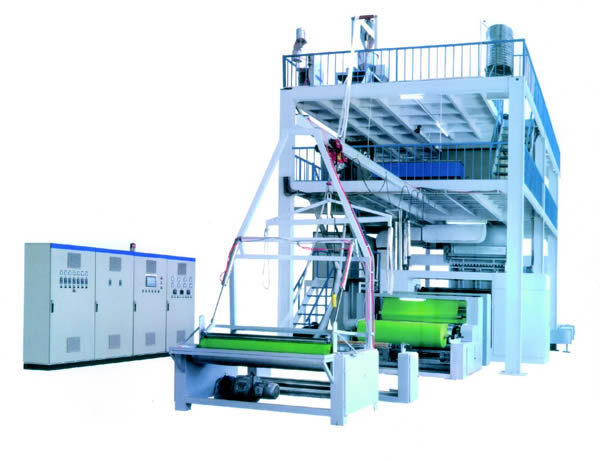

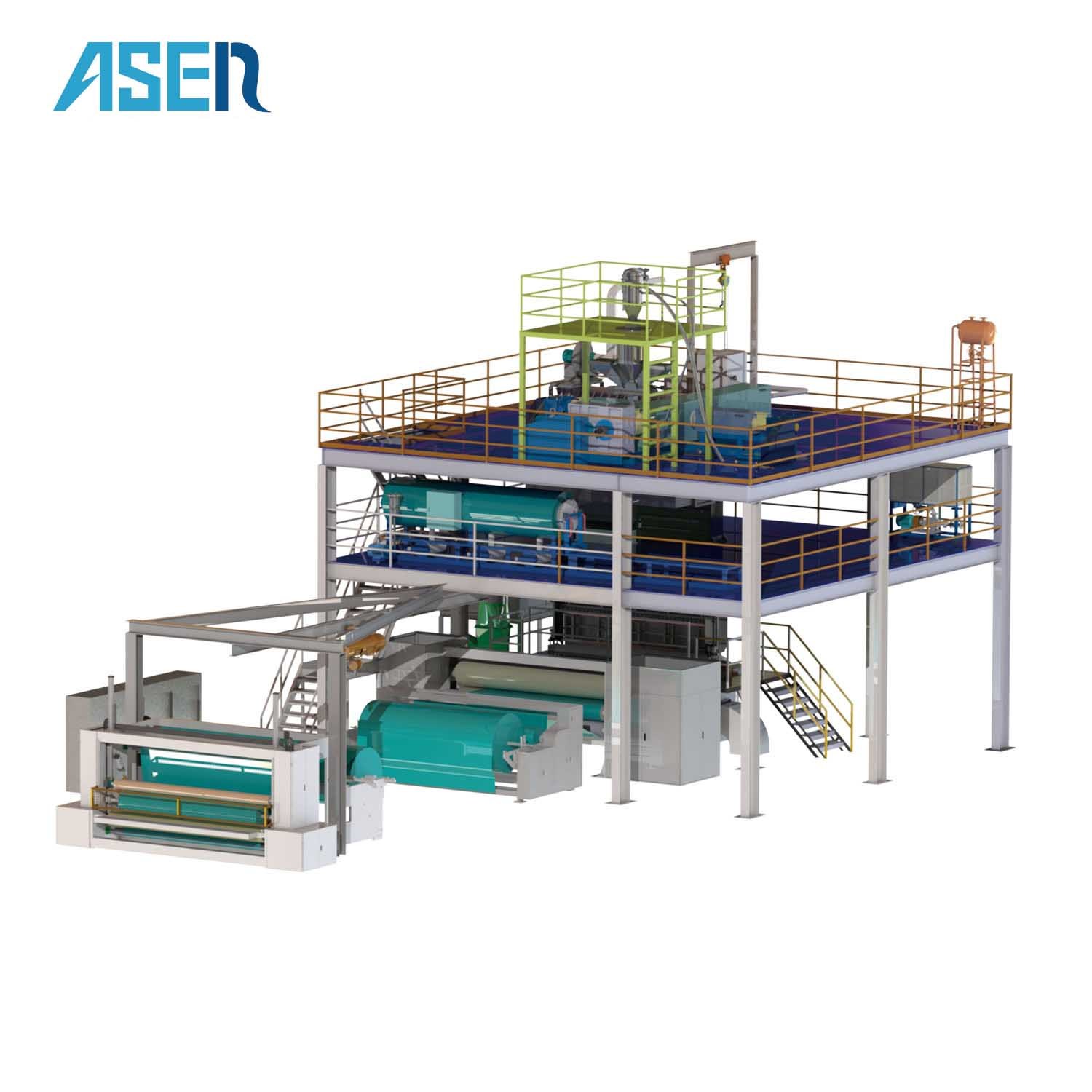

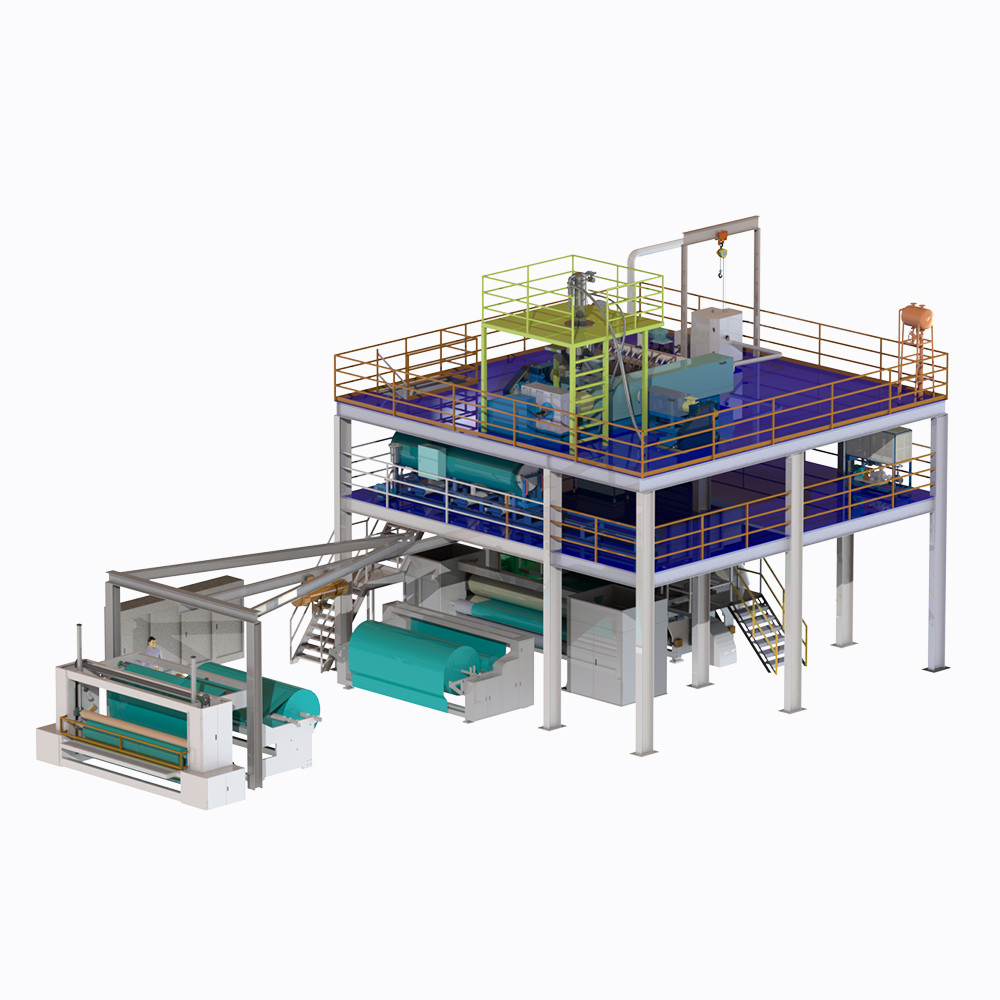

Single Beam Spunbond Nonwoven Line
Item specifics
- Spunbonded Nonwoven:
- 1.3 — 2.5 DAN
- Fabric Width:
- 1600mm/2400mm/3200mm
- Consumption of Raw Materials:
- 0.2%
- Maximum Package Diameter:
- 2000mm
- Main material:
- Polypropylene chip
- Product Gram:
- 10-100g/m2
- Machine Speed:
- 20-450m/min
- Yield:
- 11t/Day(24h), calculated as 12g/ m2
- Raw Material Main Index Requirements :
- PP
- Weight:
- 60-300t
- About Average Power Consumption:
- 1400-1800 KWH/Ton(Related with production width)
Product review
Description
Product Description
Details Images
Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10;
Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;
Automatic Slitting Machine
Speed:600-800 M/Minute;
Min. Slitting width:80mm;
Max. Rolling size:1500mm diameter;
Auto tensile control:online;
Auto meter counting:online;
Original:CHINA;
Extrusion Machine
Aperture：90 300kg/h 1pc;
Heating System: electricity heating;
Drive Motor: Siemens;
Original:CHINA;
Automatic Winding Machine
Effective width:1600/2400/3200 mm;
Rolling Speed:200-400M/Minute;
Rolling Diameter:2000 mm;
Original: CHINA;
Production Line Control Cabinet
Voltage: 380 V/3 Phase;
Touch Screen:Siemens;
PLC: Siemens;
Frequency:Siemens;
Indicator: RKC,JAPAN;
Original:CHINA;
Raw Material Dosing Machine
Weight system: by weight;
Hopper : 4 pcs;
Accuracy:0.01%;
Feeding Percentage: 1-99%;
Original:USA/ITALY;
Candle Filtration Machine
Filtration Area: 3.5m²;
Capacity: 650kgs/h;
Filtration Chamber: 2 pcs (switch online);
Original:CHINA;
Spinning Pump
Capacity:300-450Kg/H;
Speed:40Rpm/Minute;
Drive Motor:Siemens;
Original: CHINA/GERMANY;
Spinneret
Hole size: 0.45mm;
Hole Qty:12350-24500pcs;
Material: SUS431;
Original:CHINA/GERMANY;
Spinning Beam
Model:1600/2400/3200mm;
Heating System:Oil/Electricity Heating;
Distribution Design: big hanger type;
Original:CHINA;
Embossing Calender Machine
Emboss Pattern: ovel/diamond/sesame/dot;
Emboss Roll diameter: 450-520mm;
Linear pressure: 30-125 N/mm;
Original:CHINA/GERMANY;
Manufacturing Technique

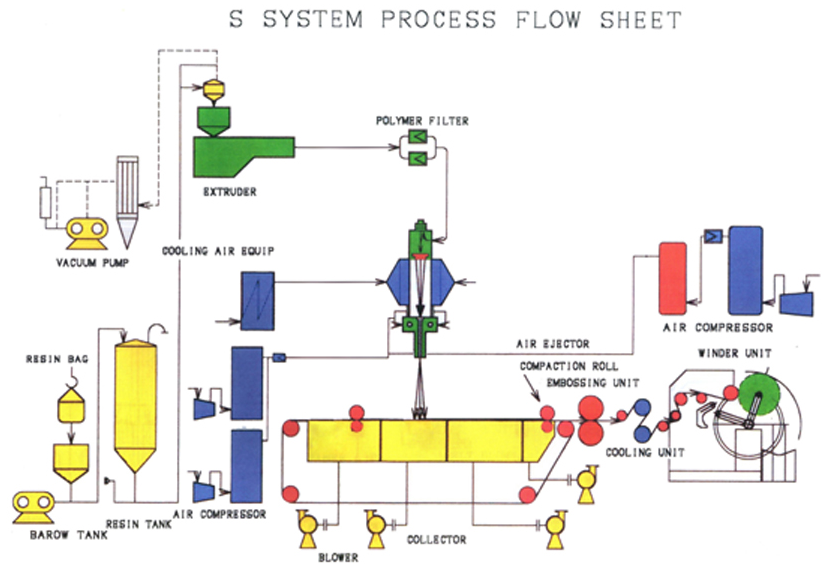

Process of meltblown nonwoven production line
Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product
Product Paramenters
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
Application
Company Profile
Asen(Foshan)Technology Co.,Ltd is one of AZX Group Limited subsidiary company. It is a strong R & D, excellent design,professional production & sales and after-sales service in one company. We are specialized in manufacturing S(Spunbond),M(Meltblown),SS，SXS，SSS，SMS，SMMS ，SSMMS etc.type PP(Polyproplene) Spunbond & Melt blown Nonwoven Production line. Our group was established in 2009, Involve in the field of Nonwoven machine, Nonwoven fabric, Medical supplies etc., we are providing high-quality products and excellent services for global users.
